KDV

ZERO AIR LOSS DRAIN VALVE KDV-Z04

Removal of condensate from compressed air systems is a critical maintenance requirement. Failure to carry out regular draining results in serious disruption to production schedules, deterioration in product quality, and damage to sensitive pneumatic equipment. Eliminates the risk of human error and possible costly aftermath by providing regular system drainage. Compared with traditional drains, zero air loss drains save compressed air energy and is a more cost-effective choice for you, KESTECH most popular zero air loss drains is KDV-Z04, which is float type ball zero air loss drain, no electricity required, usually installed under the air tank with large capacity of 680L/H.

zero-air-loss

Advantages

◆ Automatic cleaning function
◆ Remove condensate without wasting compressed air
◆ Large-diameter valve nozzle, easy to discharge oil, rust and pipe scale
◆ Long-life all-stainless steel valve nozzle design, pressure-resistant design
◆ Large-volume: double-layer strainer

Specifications

Inlet Connection:                     Rc1/2″
Outlet Connection:                  Rc3/8″
Max Working Pressure:          1.6 Mpa
Max Working Temp:               90 DC
Capacity:                                    680 L/H

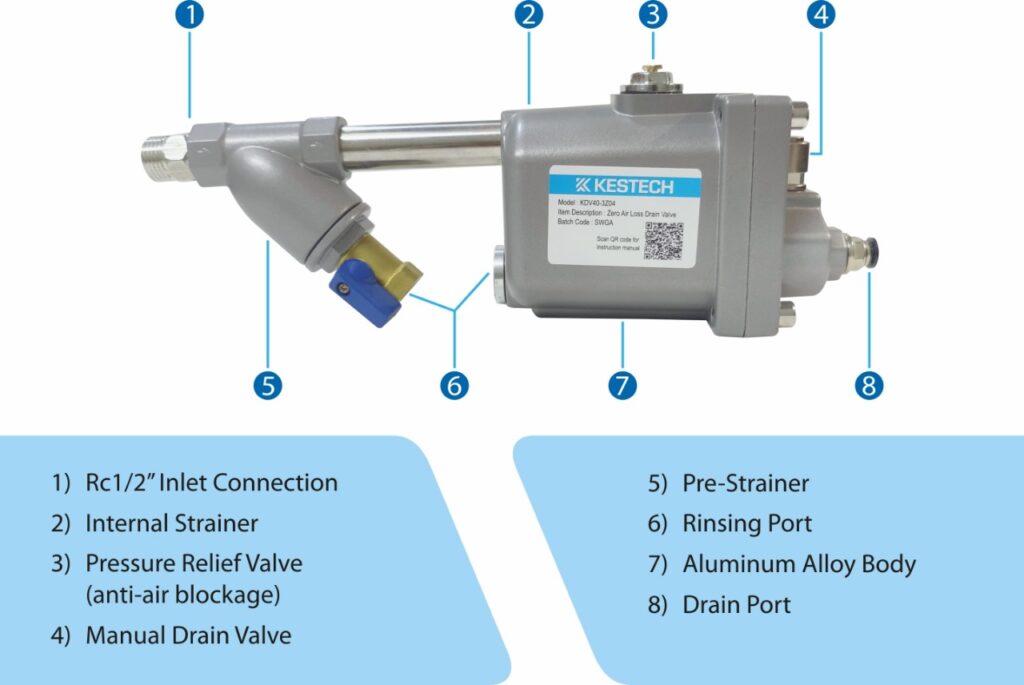

  1. Inlet Port (Rc 1/2″)
  2. Internal Strainer
  3. Pressure Relief Valve
  4. Manual Drain Valve
  5. Pre Strainer
  6. Rinsing Port
  7. Alu Alloy Body
  8. Drain Port
KDZ-04 PARTS-DES
